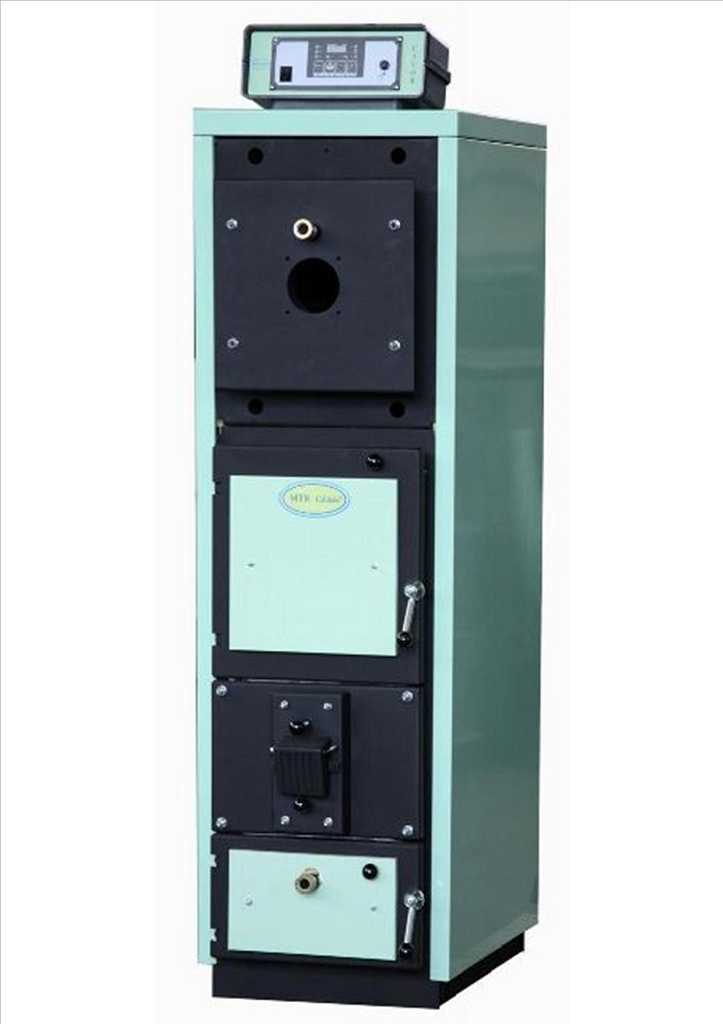

CALOR-COMBI

Steel boiler for wood heating. Principle of operation gasification and reverse flame. Power aspirated via the motor at the rear of the boiler.

Optimization and control of the combustion by controlling the adjustment of primary air and secondary. Large inspection doors of the warehouse and the combustion chamber to facilitate the loading and maintenance. Cradle steel lower heat. Thickness of the hearth steel 8 mm

Insulation thickness of 80 mm.
Overheating safety exchanger, consisting of a steel coil, immersed directly in the boiler.

Superimposed on the wood-fired boiler, there is a pressurized boiler steel for blown burner for gas / diesel fuel with combustion chamber dry flame inversion self-cleaning and ceramic fiber insulation. Chimneys separate and independent.

Electronic control unit for both generators, preventing simultaneous operation.

The electronic control unit adjusts the modulating operation of the boiler and automatically manages the control of the water temperature and the operation of the fan.Ignition of the boiler gas / oil if you finish the wood.

All models are available with hearth stainless steel 6 mm thick.

The boilers series CALOR are available in:
• RS: only heating
• SN: with DHW production. Via copper heat exchanger immersed directly in the boiler water, you can have the instantaneous production of sanitary hot water.

Models available with power from 28 kW to 60 kW.
