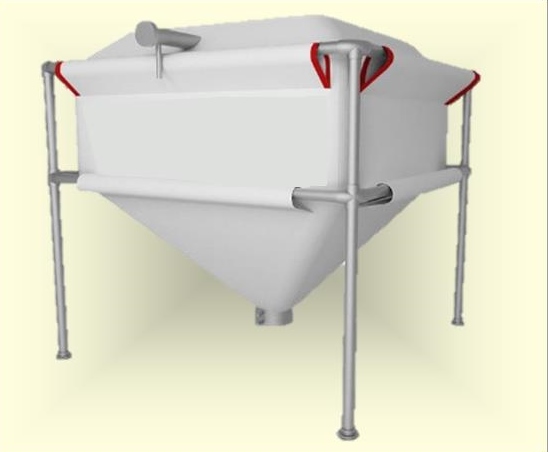

supersilo_1.jpgSilos for pellets in tissue
The model SuperSilo is characterized by a simple and quick installation. The structure with galvanized steel fasteners and stamping  intermediate is aesthetic, functional and extremely durable.
Made with a technical fabric with high strength and safety stitching that allows the discharge of static electricity directly to the construction of the system of grounding or boiler; the fabric allows aeration of the material, but not the exit of the powder, which are not necessary for two Storz couplings for filling. Can be installed outdoors, provided it is protected from rain and sunlight.
Including pneumatic loading system Storz, screw cap with chain.

ADDITIONAL COMPONENTS
  • Adapter system load pellets screw - TYPE DOUBL
Allows the connection of a system of load pellets rigid rod to feed two boilers. Exit 75mm.
  • Adapter system load pellets screw - TYPE FLEXIBLE
Allows the connection of a load pellets with flexible arm. Exit 75mm and 90mm
  • Adapter system load pellets screw - TYPE RIGID
Allows the connection of a system of load pellets rigid rod. Exit 75mm and 90mm

Model Lengh
cm		 Width
cm		 Height
cm		 Volume
m³		 Capacity
t
SP120 120 120 200/250 1,5-1,8 0,9-1,1
SP150 150 150 200/250 2,7-3,1 1,7-2,0
SP170 170 170 200/250 3,6-4,0 3,6-4,0
SP200 200 200 200/250 4,8-5,8 3,1-3,7
SP250 250 250 200/250 7,9-8,8 5,1-5,7
SP300 300 300 200/250 10-12,9 6,5-8,3
